We only supply to companies and organisations. More Information

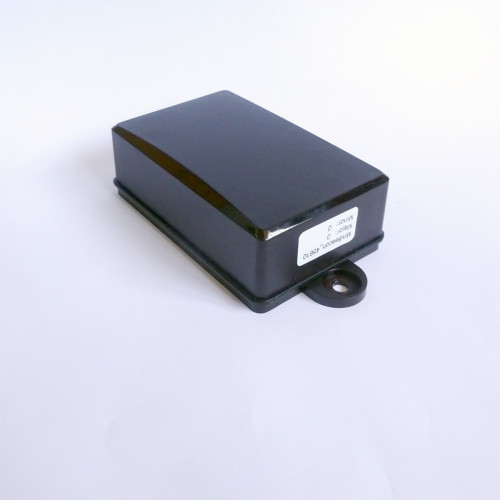

Waterproof, twin AA battery beacon that advertises up to 6 channels that can be iBeacon, Eddystone UID, Eddystone URL, Eddystone TLM and device info. Top has screws for ease of changing the battery. Tags for screw mounting. Uses the newer Nordic nRF52 SoC for improved battery life up to 5 years depending on the settings and the type of batteries. Up to 200m range.
The Eddystone TLM advertising and configuration app show a temperature. This is not a separate temperature sensor, it's the System on a Chip (SoC) die/chip temperature. As the chip is low power and generates little heat, this tends to track the external temperature. However, note that this temperature has a low resolution of 0.25C and changes slowly as the beacon is sealed for waterproofing.
Includes fixings and sticker.
Available in black only. AA Batteries not included.
This is the version with the crystal oscillator. Suitable for use with TRBOnet.
Note that, as with any long range beacon, the maximum range is achieved only when there's line of sight.
Supplied with details how to access the technical information.
Beacons | |
Transmission | iBeacon and Eddystone |
Battery size | AA |
Number of batteries | 2 |
Battery included | no |
Battery life | Up to 5 years @ 1 sec advertising |
Size | 72mmx45mmx22mm |
Weight | 50g |
Waterproofing | IP66 |
Includes sticker | yes |
Password to configure | yes |
Power range | -30dBm to +4dBM |
Buzzer | no |
Temperature sensor | no |
Humidity sensor | no |
Accelerometer sensor | no |
Motion triggered broadcast | no |
Operation modes | sleep,normal,connected |
On off switch | yes |
Chip | nRF52822 |
Standby current | |
Working current | 10.5mA |
Transmit distance | 200m |
Android SDK | yes |
iOS SDK | yes |
Android config app | yes |
iOS config app | yes |
i3
- Brand: Minew Technologies Co
- Product Code: i3
- Stock: 693
-
£26.40
- Ex vat: £22.00
- No waiting weeks - delivery from stock
- Ex vat outside UK - shown after registering
- Fast 1-2 day delivery by UPS courier
- Expert English UK based support
Read past customer feedback
